GN 7330 Flush pull handles

for mounting with screws, with or without gasket, zinc alloy

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Die cast zinc alloy, epoxy resin coating, black colour RAL 9005 (SW) or grey colour RAL 9006 (SR), matte finish.

Packing ring

NBR synthetic rubber, black colour, glued to the handle body.

Screws (only for GN 7330-A)

AISI 304 stainless steel with countersunk flat head, with polyamide coating in the underhead.

IP protection

Degree of protection IP 66 in accordance with EN 60529 table.

(only for executions with packing ring).

Standard executions

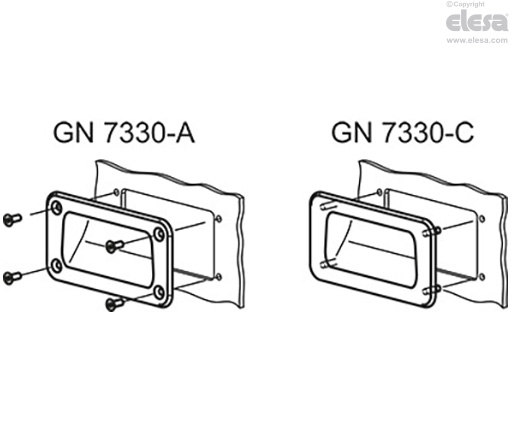

Front mounting by means of pass-through holes for M5 countersunk flat head screws, included in the supply:

  • GN 7330-A-1: without gasket.
  • GN 7330-A-2: with packing ring.

Rear mounting by means of 4 M5 screws welded to the handle body:

  • GN 7330-C-1: without gasket.
  • GN 7330-C-2: with packing ring.
GN 7330-A-1 - Front mounting, without gasket
Instructions of use

Assembly instructions

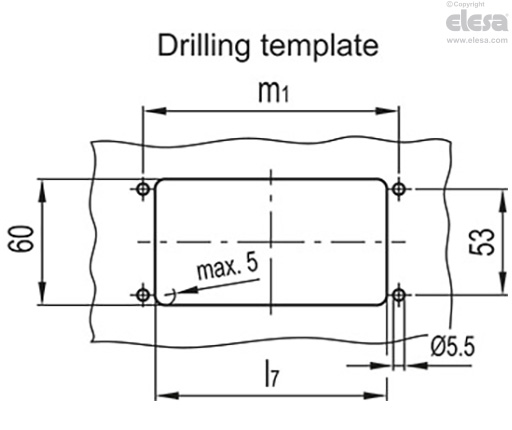

Drill the handle housing according to the template dimensions.

GN 7330-A-1 - Front mounting, without gasket
 l7m1
GN 7330-12788+1100
GN 7330-155115+1128
