GN 30I Brackets

Zinc Die Casting, for Aluminum Profiles (I-Modular System), with or without Accessory

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Versions

  • Version A: without accessories
  • Version C: with fastening set and cover cap

Angle bracket

Die-cast zinc alloy

Painted, white aluminum     ZW

Screws and T-Nuts (only for Type C)

Zinc-plated steel, blue passivated     SZ

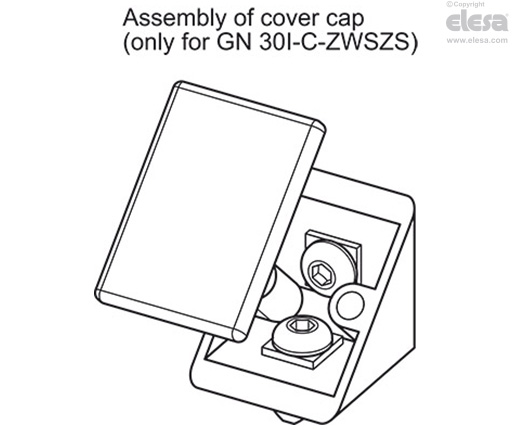

Cover cap (only for Type C)

Polyamide based (PA) technopolymer

Black     S

General information

Features and applications

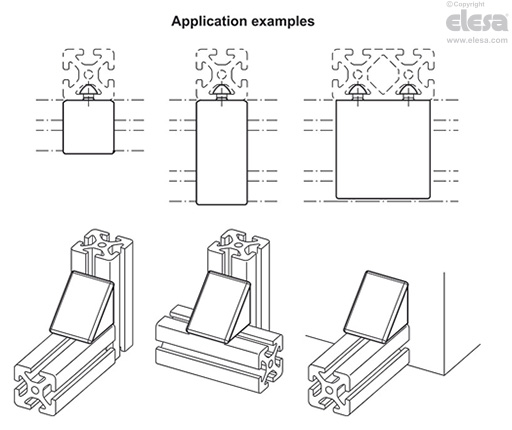

Angle brackets GN 30I fasten aluminum profiles to objects such as tables and panels or at right angles to each other. Machining of the profile is not necessary.

The connection can be freely positioned and slid along the slot. To fasten the angle brackets to a panel or transversely to an aluminum profile, the guide steps must be broken off.

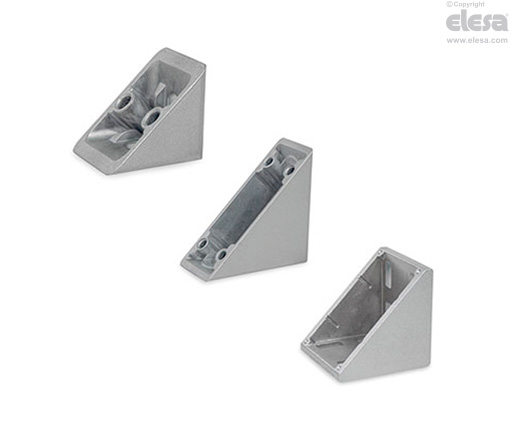

GN 30I-A-ZW - Without accessories
GN 30I-A-ZW - Without accessories
Accessories on request

Accessories on request
