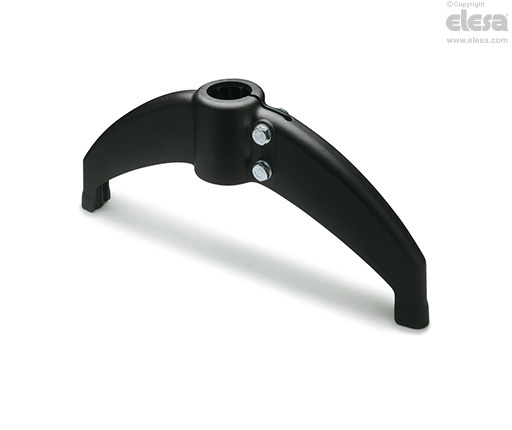

BAS2 Conveyor bipod support base

two arms, Technopolymer




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

  • BAS2-A: zinc-plated steel M10 screws, nuts and washers.
  • BAS2-SST: AISI 304 stainless steel M10 screws, nuts and washers.

Assembly on levelling elements

The bipod support bases are supplied with brass bosses, threaded pass-through hole for the assembly of the stem of the levelling element series LS.A, LV.A, LV.F.

General information

Features

The rounded shapes with a modern and elegant aesthetic guarantee maximum cleanability in the event of liquids or dust falling from above.

Maximum tightening torque for screw assembly 35 Nm.
