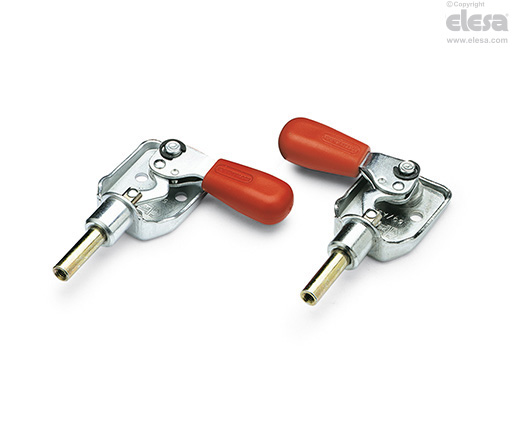

MLA. Push-pull toggle clamps

Steel



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

C10 zinc-plated steel.

Rivets

Zinc-plated steel.

Push lever

Zinc-plated steel.

Reference bushing

Zinc-plated steel.

Standard executions

  • MLA-ASD: with pressure clamping and right rotation.
  • MLA-ASS: with pressure clamping and left rotation.

Clamping bolt

To be ordered separately.

General information

Features and applications

All articulated joints are lubricated with special grease.

Main features of MLA. clamps include the application point that is very close to the mounting surface and a limited space vertically. Both push and pull clamping can be performed effectively.

MLA. - Push-pull toggle clamps
Elesa
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
