GN 513 Spring plungers

Steel

Technical datasheet

Select type

GN 513-I-1

GN 513-I-1

Spring plungers

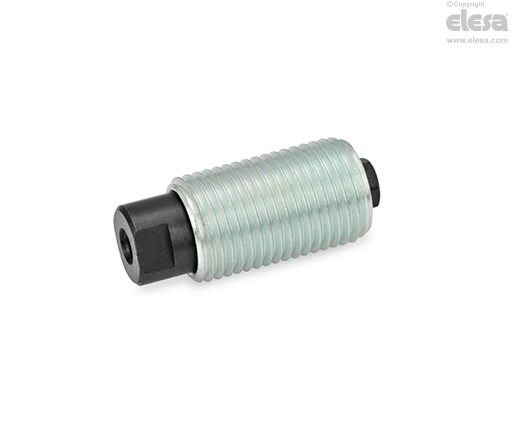

End with female thread, normal end-force spring

GN 513-I-2

Spring plungers

End with female thread, heavy end-force spring

GN 513-H-1

Spring plungers

Semispherical end, normal end-force spring

GN 513-H-2

Spring plungers

Semispherical end, heavy end-force spring

GN 513-K-1

Spring plungers

End with plunger, normal end-force spring

GN 513-K-2

Spring plungers

End with plunger, heavy end-force spring

GN 513-P-1

Spring plungers

Prismatic end, normal end-force spring

GN 513-P-2

Spring plungers

Prismatic end, heavy end-force spring

Select item

Technical specifications

Scroll horizontally

Main specifications
General information

Main specifications

Threaded body

Zinc-plated steel.

Standard executions

Black-oxide and case-hardened steel end.

GN 513-I: with female thread.

GN 513-H: semispherical.

GN 513-K: with bolt.

GN 513-P: prismatic.

End-force spring:

1: normal end-force spring, with phosphatised steel back assembly ring, anthracite colour;

2: heavy end-force spring, with zinc-plated steel back assembly ring.

General information

Features and applications

GN 513 threaded spring elements are suitable for detenting, positioning or for clamping elements by means of the spring pressure load.
