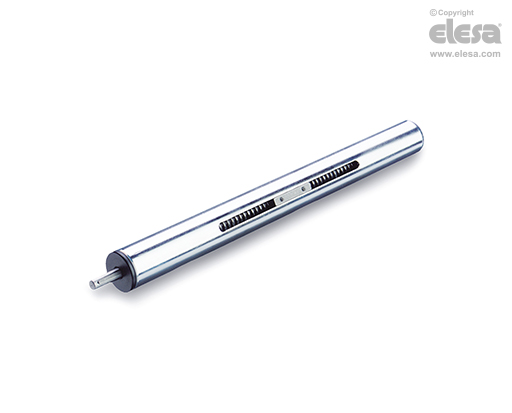

GN 291 Linear actuators

Steel




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Guide tube

Chrome-plated steel.

Worm screw with trapezodial threading

AISI 303 stainless steel.

Slider

Brass.

Slider connecting insert

Natural steel.

Closing end-caps

Polyamide based (PA) technopolymer.

Standard executions

  • GN 291-R1: right threaded screw, projecting on one side.
  • GN 291-L1: left threaded screw, projecting on one side.
General information

Features and applications

The assembly of GN 291 linear actuators can be made by using the different types of connecting clamps.

In order to measure the movement and fix the position of the sliders can be used the digital gravity position indicatorsᅠDD52RᅠandᅠDD51.

Other executions

Special executions on request

  • Linear actuators with different lengths.
  • AISI 304 stainless steel guide tube linear actuators.
  • Linear actuators with two separated worm screws.
  • Linear actuators with worm screw projecting on both ends, right threaded (GN 291-R2) or left threaded (GN 291-L2).
  • Guide tubes with laser-engraved precision graduations.
