ELESA CAD models

Directly from the technical datasheets. For all product codes. In multiple formats.

Reducing design time and costs is a prerequisite that the mechanical engineering community considers a priority.

Having free access to models in the most common CAD formats of the numerous components to be included in the projects, represents a concrete advantage for designers.

ELESA offers a service that allows you to save time by not having to manually create your CAD models.

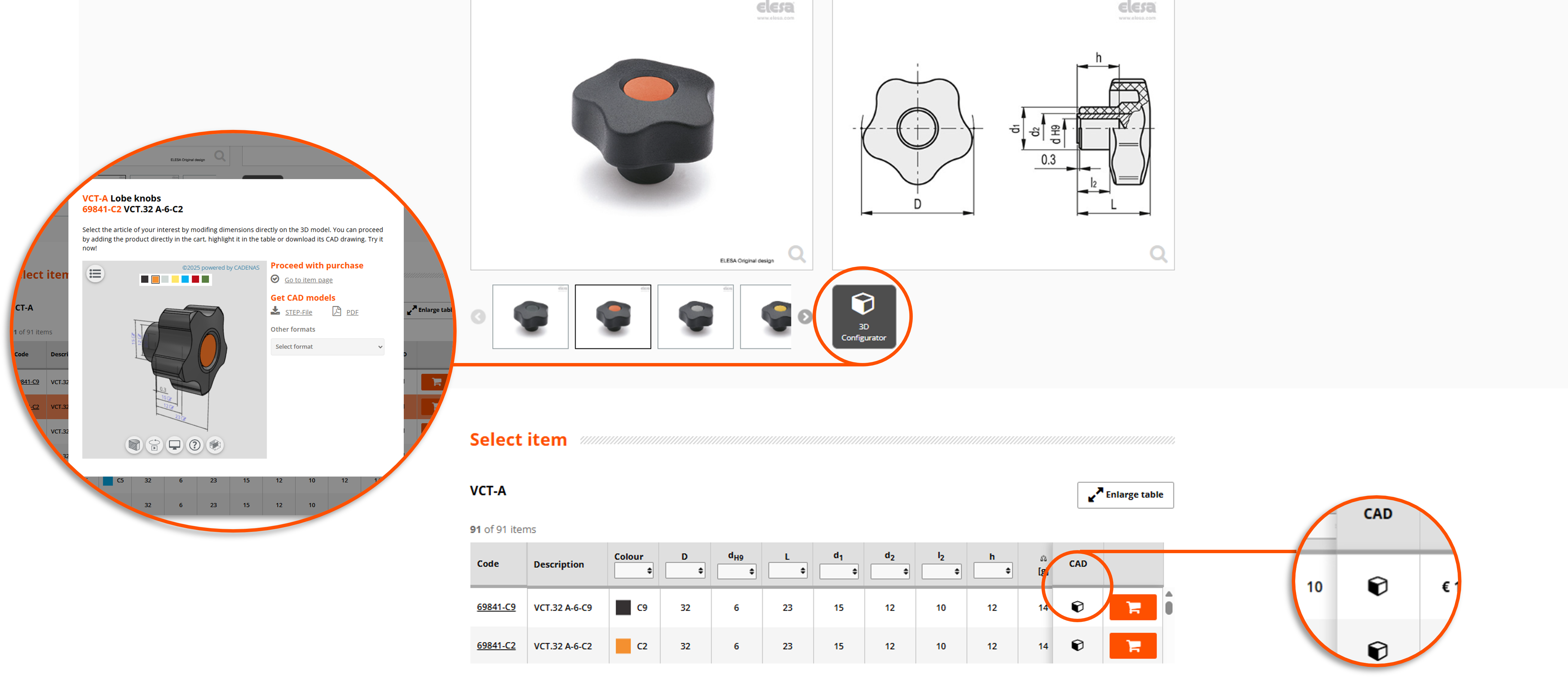

Directly from the product page, in just a few steps you can:

• Configure your standard component with automatic dimensioning system and select the colour variants directly on the model, using the new interactive configurator.

• Direct download of STEP and PDF files.

• Get 3D models by email - if you are a «guest user».

• Download CAD models in different formats with Part2CAD to easily integrate them into your designs, without the need to save them temporarily.

• Add the selected product directly into the cart.
