Elesa CAD Drawings

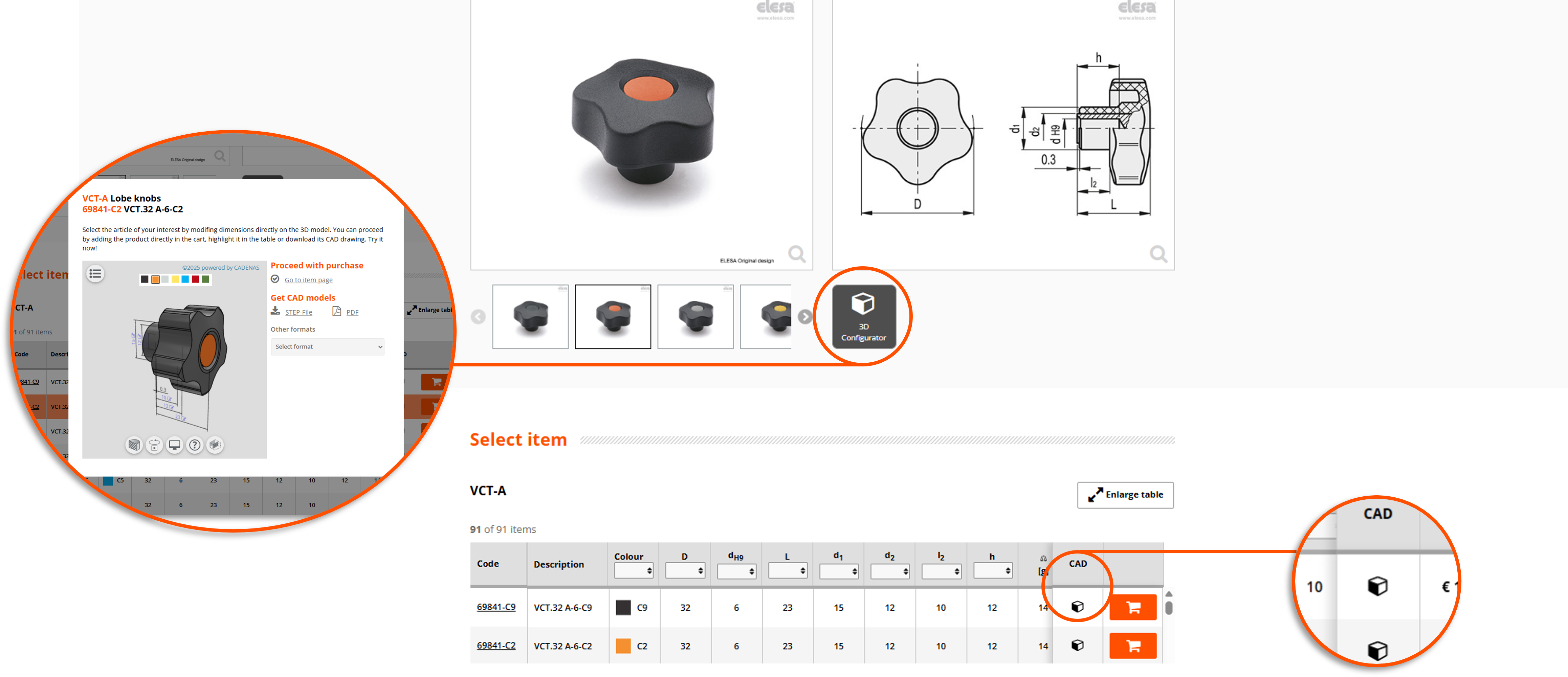

Easily access detailed CAD drawings through the Elesa user-friendly configurator today!

Reducing design time and costs is a prerequisite that the engineering community often considers a priority. Elesa stepped up to the mark in assisting this need and created a 3D Product Configurator, which provides free access to drawings and models in common CAD formats.

Striving for the highest quality in product development is a priority, as is providing a positive user experience. These are the core ethics behind Elesa. Therefore, providing the following:

  • Configure your standard component with an automatic dimension system and select the colour variants directly on the drawing.

  • Direct download of STEP and PDF files.

  • Get 3D models by email - if you are a «guest user».

  • Download CAD models in different formats with Part2CAD to easily integrate them into your designs, without the need to save them temporarily.

  • Add the selected product directly into the cart.

Over 65.000+ standard product codes available:

  • in neutral formats (SAT / STEP / IGES / DXF)
  • in native formats of CAD systems including AutoCAD, SolidWorks, Inventor, Catia, Solid Edge, Pro/E, ME10, NX.
Golden quality logo

“Golden Quality Seal” Award received from CADENAS GmbH for the high-quality smart 3D engineering data.
