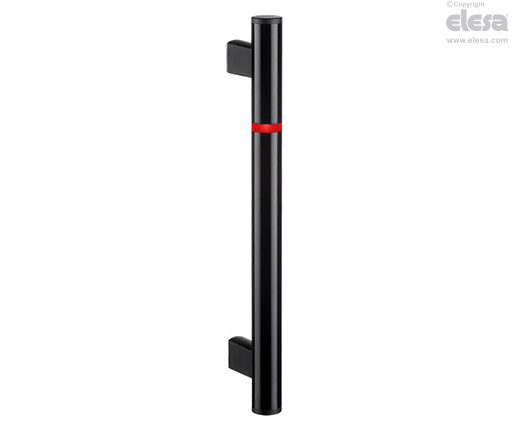

RH-FG17 Tubular handle with LED

Round section, technopolymer and aluminium



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Handle shanks

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

End caps

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Tube

Anodised aluminium black colour.

Cable

8-pin length 5 m.

IP protection

IP 65 protection class, according to EN 60529-.

General information

Features and applications

The RH-FG17 handle perfectly combines ergonomics, functionality and safety.

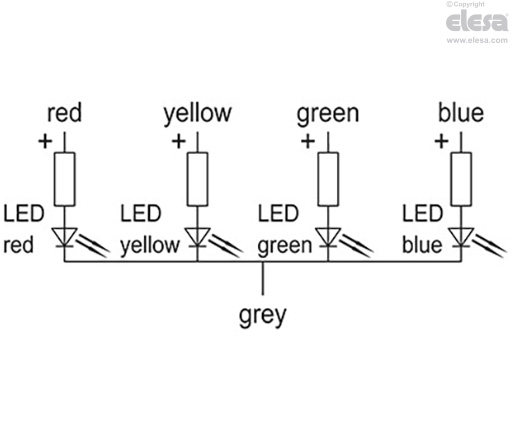

An LED ring (red/green/yellow/blue) is integrated into the handle which, interfaced with an external logic, indicates the status of the machine.

Electrical features
RH-FG17 - Tubular handle with LED
Electrical features
Led light voltage24 Vdc
Uscita cavo8 poli
Elesa
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
