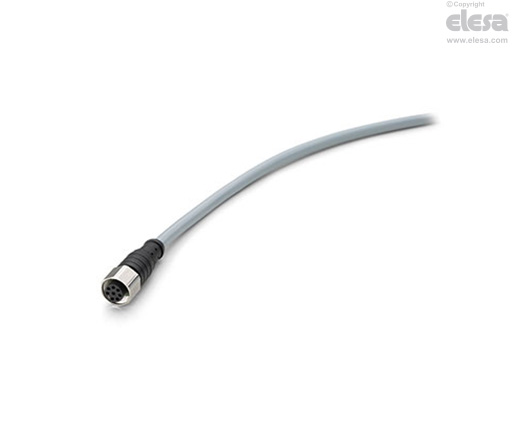

FC-ESC Connector cable M12x1

For ESC-SFT



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Cable

Cable with grey PVC sheath ø 5.8 mm, 2.5 or 5 m long.

Connector (Protection IP67)

8 pole M12x1 female connector with polyamide-based (PA) technopolymer housing and contact holder.

Nut

AISI 316 stainless steel nut.

Technical data
Conductors cross-section6xAWG 24 STYLE 2517
Maximum applicable voltage30Vac/dc
Maximum current intensity1A
Insulation resistance≥100MΩ 500VDC
Working temperature-25°C, +80°C
Protection classIP67 *

* With the connector properly screwed

General information

Compatibility

ESC-SFT: handles with built-in safety switch.
